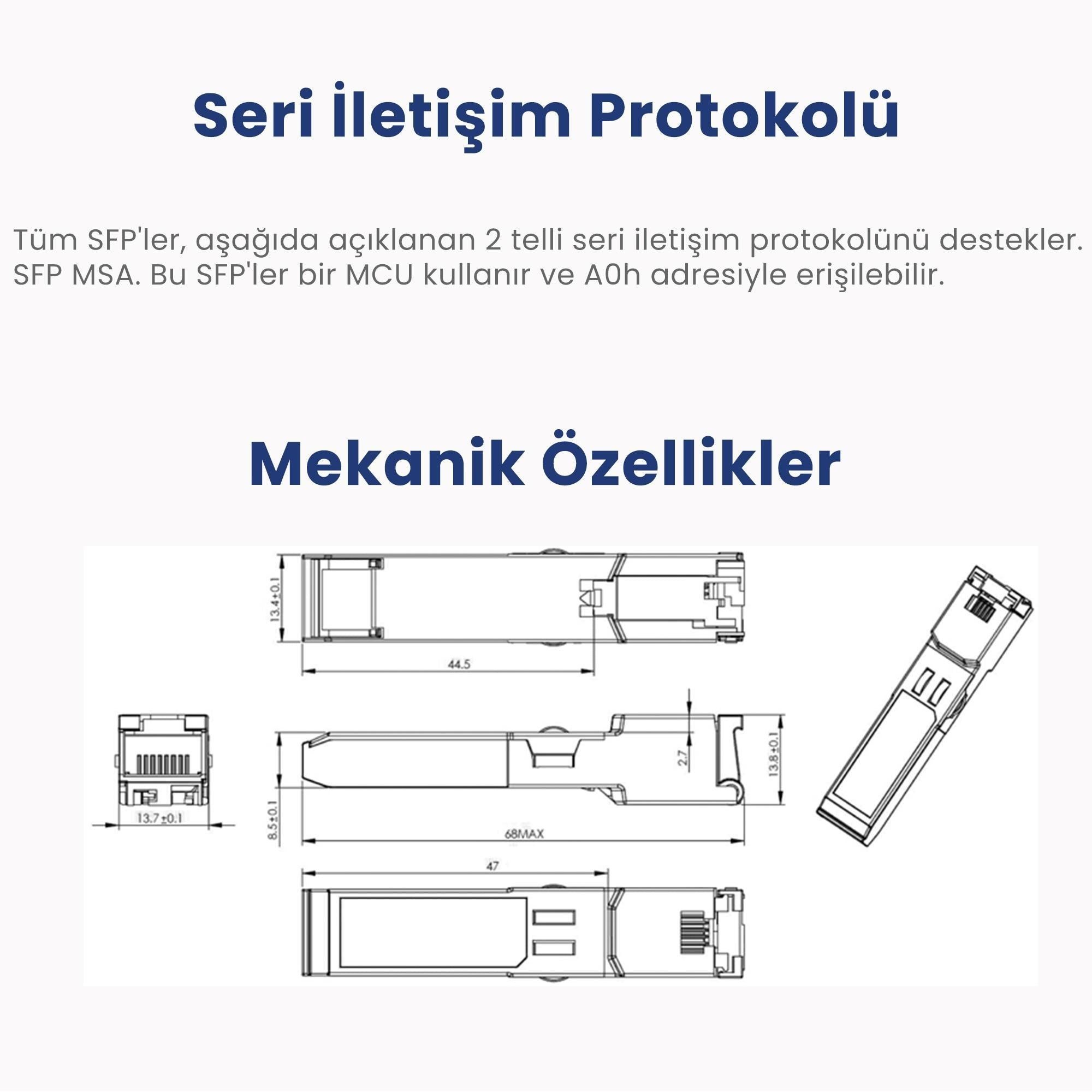

Line Side

Cable

Reach

Host Interface

10base-T

CAT5

200m

100base-FX

100base-Tx

CAT5

100m

100base-FX

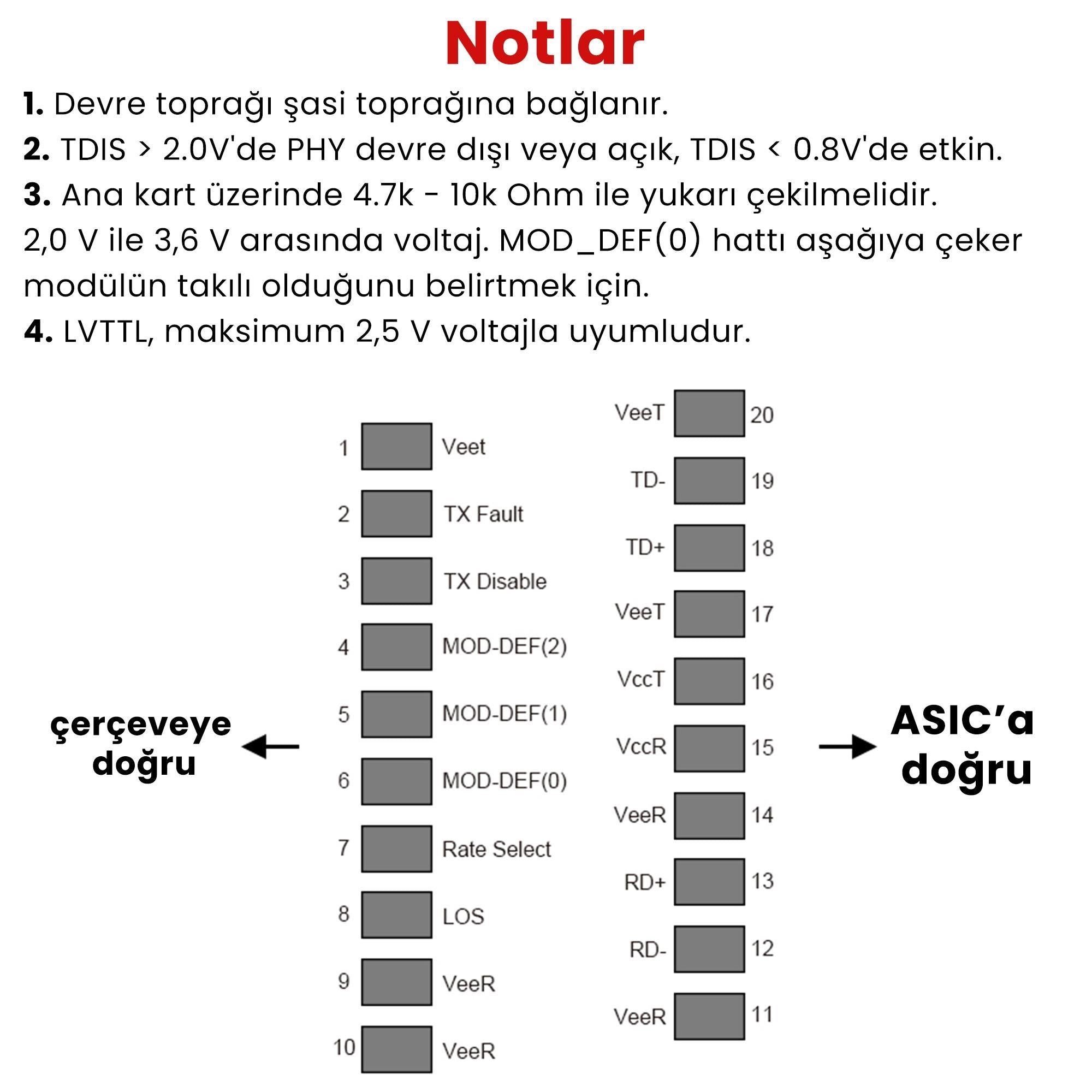

Pin

Symbol

Name/Description

Ref

1

VEET

Transmitter Ground (Common with Receiver Ground)

1

2

TFAULT

Transmitter Fault. Not supported.

3

TDIS

Transmitter Disable. Laser output disabled on high or open.

2

4

MOD_DEF(2)

Module Definition 2. Data line for Serial ID.

3

5

MOD_DEF(1)

Module Definition 1. Clock line for Serial ID.

3

6

MOD_DEF(0)

Module Definition 0. Grounded within the module.

3

7

Rate Select

No connection required

8

LOS

High indicates no linked. low indicates linked.

4

9

VEER

Receiver Ground (Common with Transmitter Ground)

1

10

VEER

Receiver Ground (Common with Transmitter Ground)

1

11

VEER

Receiver Ground (Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out. AC Coupled

13

RD+

Receiver Non-inverted DATA out. AC Coupled

VEER

Receiver Ground (Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply

16

VCCT

Transmitter Power Supply

17

VEET

Transmitter Ground (Common with Receiver Ground)
